Tenda TEF1106P-4 6Port Switch 4FE PoE + 2FE Uplink 60W
10.900 KD
Sale price
10.900 KD
Regular price
13.250 KD
TEF1106P-4-63W is an unmanaged PoE switch with 2 uplink ports that can connect with Router & NVR. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. TEF1106P-4-63W is an ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.

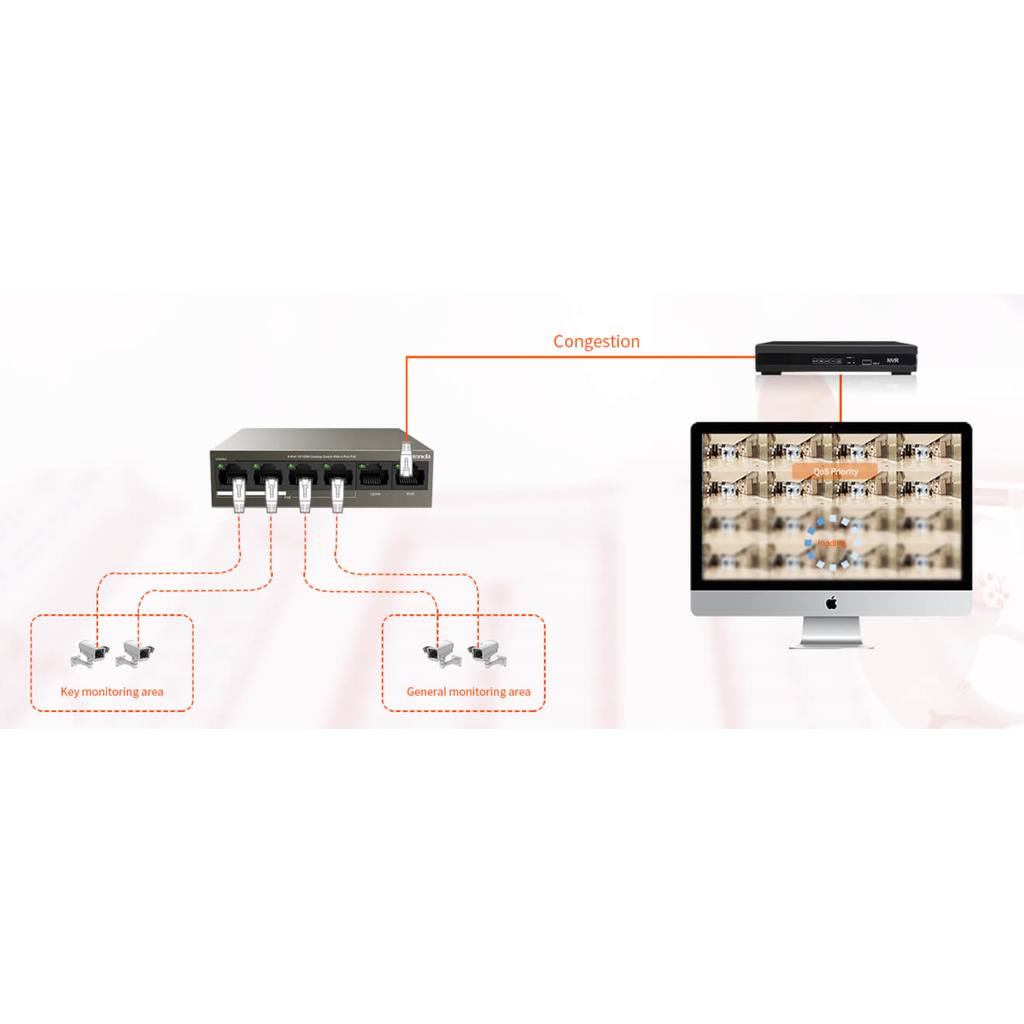

Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1106P-4-63W can support 250 meters data transmission in the Extend mode, which can save the cost of your project with less devices used.
Specifications
- compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE802.3af/at standards
- 4 * 10/100 Mbps Base-TX RJ45 ports for data transmission and power supply
- 2 * 10/100 Mbps Base-TX RJ45 ports for data transmission
- 1 K MAC address table and MAC address auto-learning
- IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
- 1.2 Gbps backplane bandwidth
- Maximum power consumption of a single port: 30 W
- Maximum power consumption of the switch: 58 W
- Supports extend mode and QoS function
- 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection
- Supports desktop and wall-mounting, plug and play
- 51V 1.25A DC
