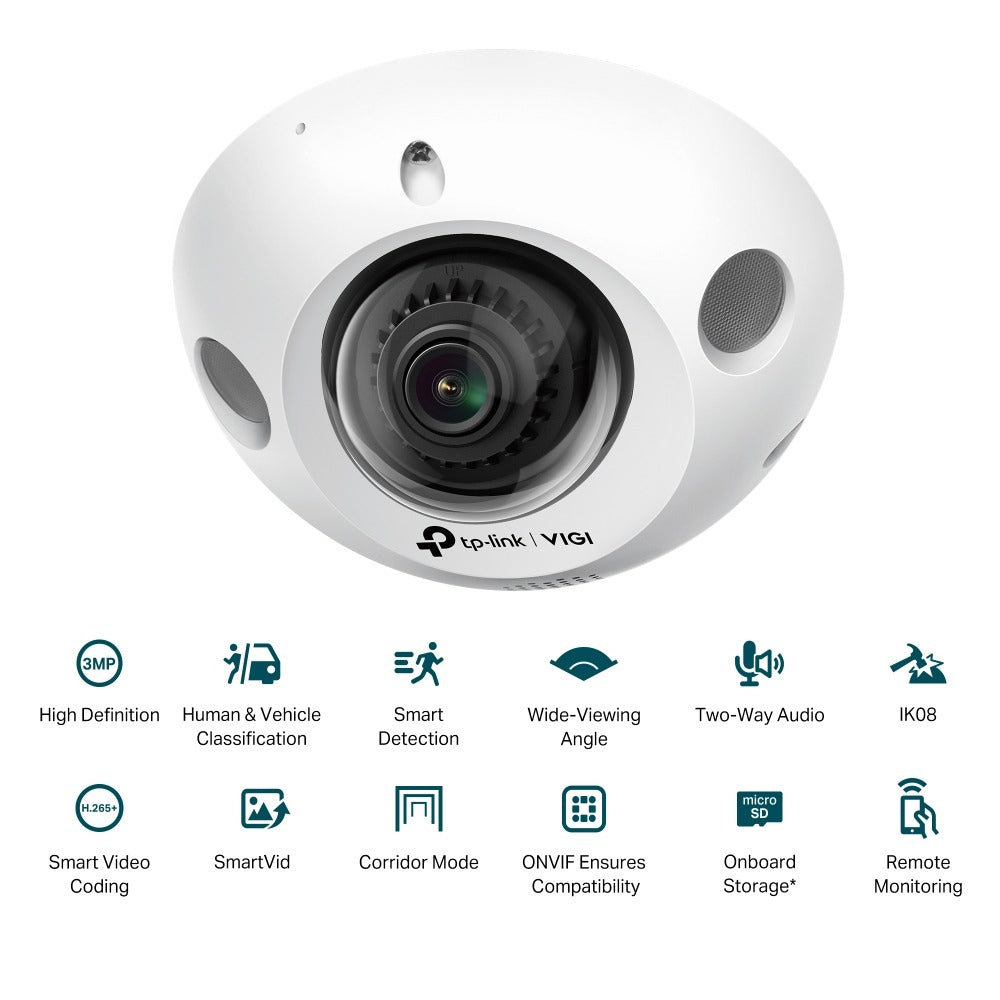

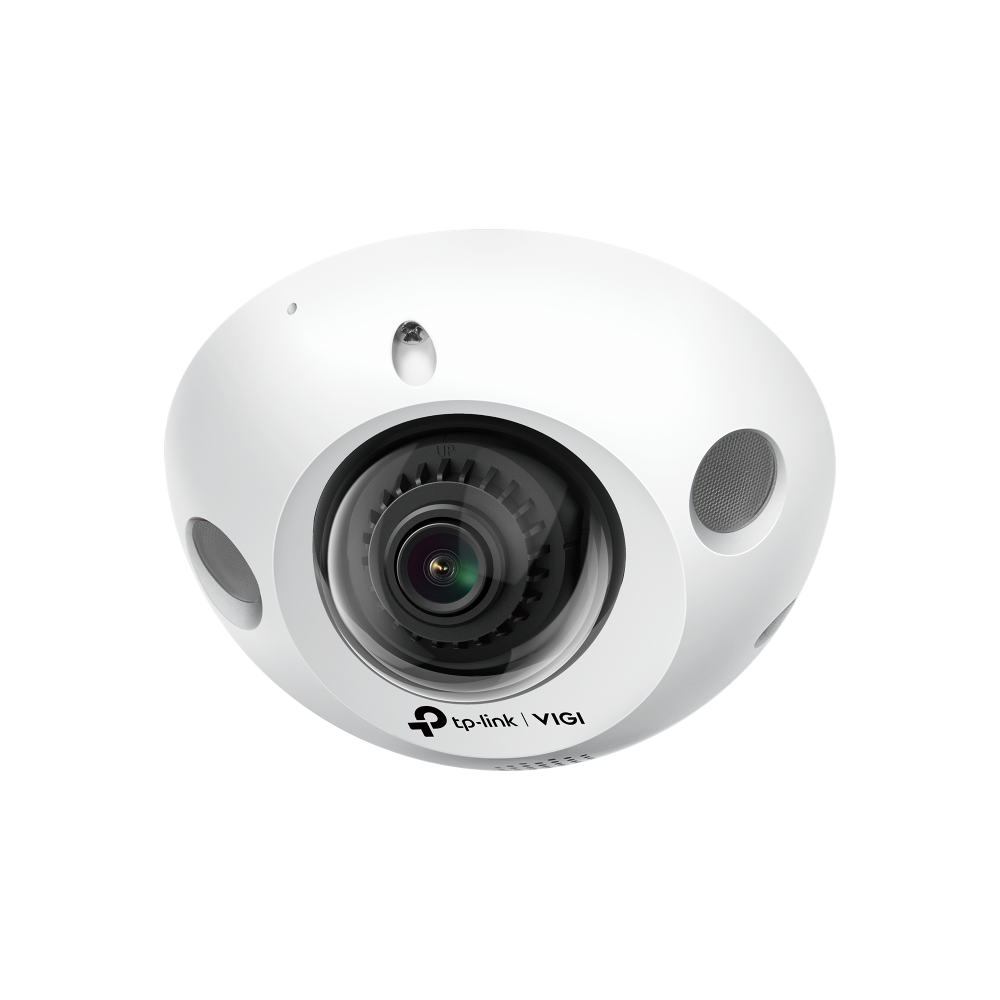

TP-Link VIGI C230I Mini 3MP IR Mini Dome Network Camera
12.500 KD
Sale price
12.500 KD
Regular price
24.000 KD
Skip to product information
TP-Link VIGI C230I Mini 3MP IR Mini Dome Network Camera
12.500 KD
Sale price
12.500 KD
Regular price
24.000 KD
Get crisp and clear footage with this high-tech 3MP IR Mini Dome Network Camera from TP-Link. Ideal for any indoor surveillance, this camera boasts advanced features and top-notch performance to keep your property safe.
Key Features
- Item ID : NS027166
- Brand : TP-Link
- Outdoor Use : No
- Indoor Use : Yes
- Mega Pixels : 3MP
- Color : White
Specifications
|
Model No |
TP-Link VIGI C230I Mini 3MP IR Mini Dome Network Camera |
|
Part No |
VIGI C230I Mini(2.8mm) |
|
Color |
White |
|
Image Sensor |
1/2.8” Progressive Scan CMOS |
|---|---|
|
Shutter Speed |
1/3 to 1/10000 s |
|
Slow Shutter |
Yes |
|
Aperture |
F1.6 |
|
Lens |
2.8 mm |
|
Lens Mount |
M12 |
|
Minimum Illumination |
Color: 0.1 Lux; 0 Lux with IR |
|
Day/Night Mechanism |
IR Cut Filter |
|
Day/Night Switch |
Unified/ Scheduled/ Auto |
|
Digital Noise Reduction |
3D DNR |
|
WDR |
DWDR |
|
IR Working Distance |
30m |
|

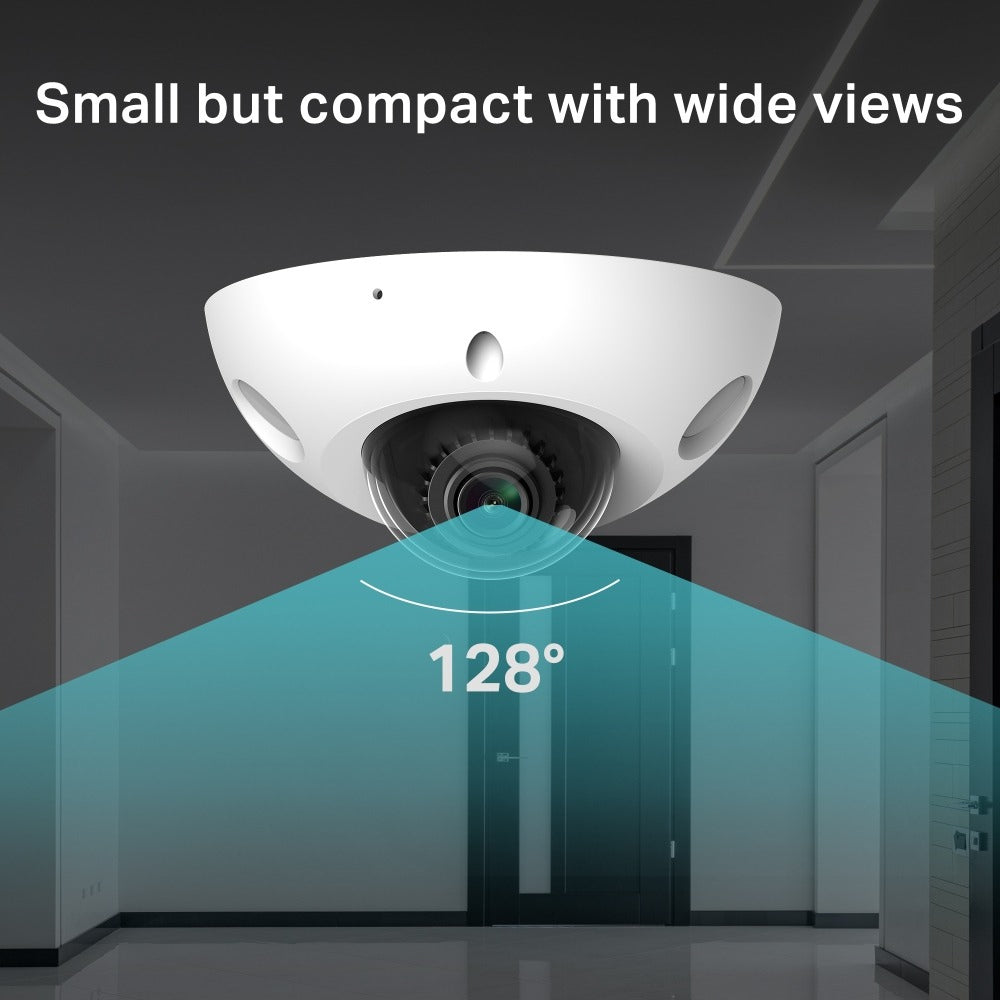

Viewing Angle |
Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9° |
|
Type |
Fixed Focal Lens |
|
Focal Length |
2.8 mm |
|
Aperture |
F1.6 |
|
FOV |
2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9° |
|
Lens Mount |
M12 |
|
DORI Distance |
2.8mm ; Detect: 49 m (161 ft) Observe: 20 m (67 ft) Recognize: 10 m (32 ft) Identify: 5 m (16 ft) |
|
Range |
Pan: -30° to 30° Tilt: 0° to 85° Rotate: -15° to 15° |
|
IR LED |
Quantity: 2 Range: 30m Wavelength: 850nm |
|
White LED |
N/A |
|
Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
|
Max. Resolution |
2304 × 1296 |
|
Main Stream |
Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080,1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
|
Sub-Stream |
Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
|
Audio Communication |
Two-Way Audio |
|
Audio Input |
Yes |
|
Audio Output |
Yes |
|
Audio Compression |
Yes |
|
Audio Sampling Rate |
8KHz |
|
Environment Noise Filtering |
Yes |
|
Audio Bit Rate |
64 Kbps(G.711 alaw) |
|
Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
|
ONVIF |
Yes |
|
API |
ONVIF |
|
Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
|
Client |
VIGI App, VIGI Security Manager, VIGI NVR, Web |
|
Web Browser |
Open Network Video Interface (Profile S) |
|
Cloud |
Yes |
|
Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
|

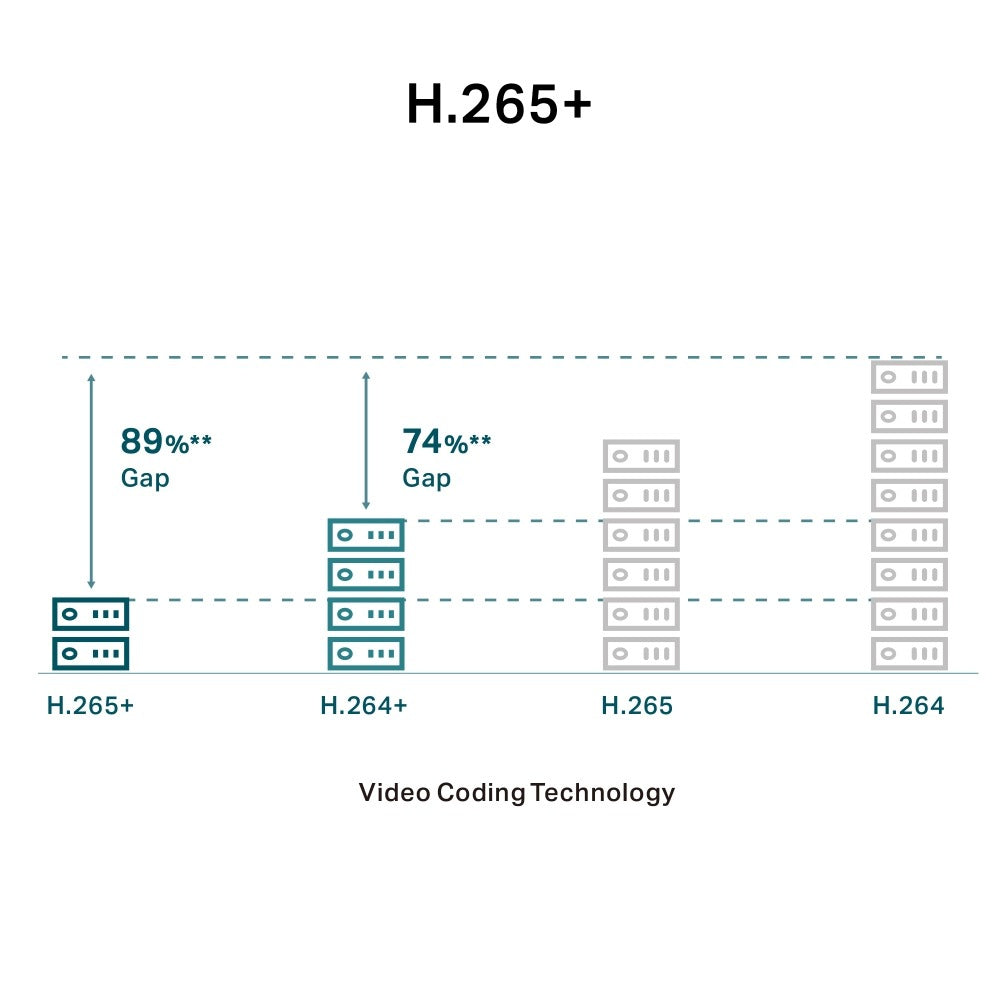

Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
|
Frame Rate & Resolutions |
Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
|
Max. Resolution |
3MP (2304 × 1296) |
|
Video Streaming |
3 Main Streams 3 Sub-Streams |
|
Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
|
Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
|
Video Bit Rate |
64 Kbps to 4 Mbps |
|
Day/Night Switch |
Day/Night/Auto/Schedule |
|
Operating Temperature |
-30–60 °C |
|
Storage Temperature |
-40–60 °C |
|
Operating Humidity |
95% or Less (Non-Condensing) |
|
Storage Humidity |
95% or Less (Non-Condensing) |
|
Package Contents |
VIGI Network Camera Quick Start Guide Mounting Accessories Mounting Template |
|
Dimensions( H X W X D ) |
114 × 114 × 58 mm |
|
Material |
Plastic |
|
General Features |
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
|
Net Weight |
0.23 kg |
|
Gross Weight |
0.41 kg |
|
Power Consumption |
12V DC: Max 7.5W PoE: Class 0 |
|
Power Supply |
12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
|

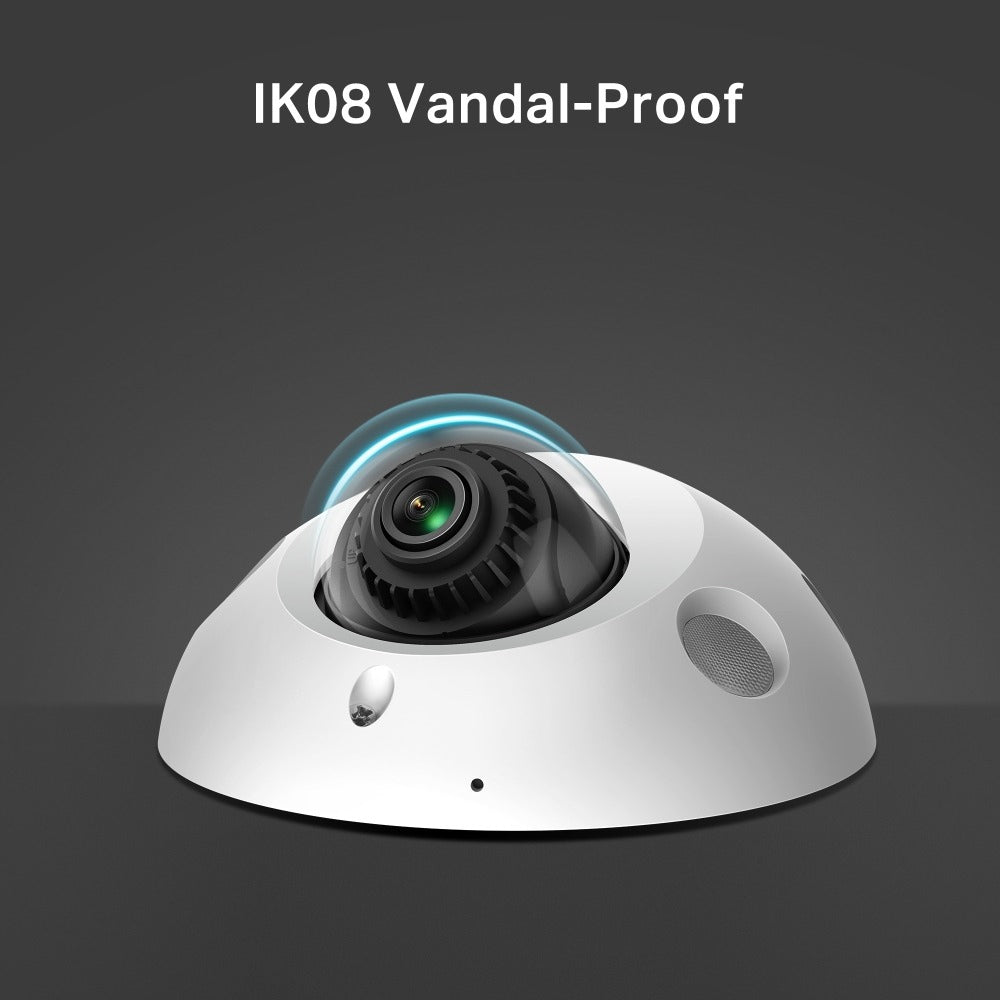

Vandal Resistant |
IK08 |
|
Protection |
IK08 |
|
Product Dimensions (L x W x H) |
114× 58× 114 mm |
|
Warranty |
1 Year (As Per Manfucturer) |
