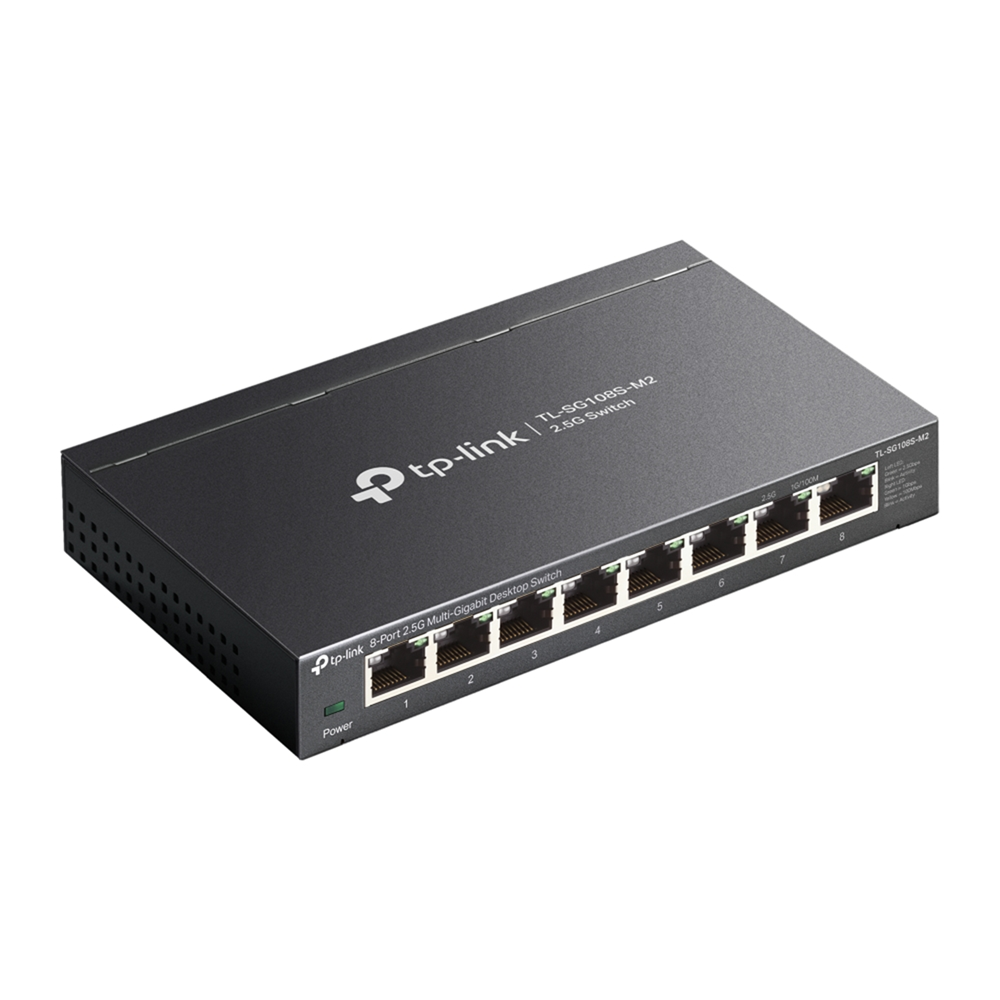

TP-Link SG108SM2 8-Port 2.5G Multi-Gigabit Desktop Switch
TP-Link SG108SM2 8-Port 2.5G Multi-Gigabit Desktop Switch delivers enterprise-grade connectivity for demanding network environments. This compact desktop switch features eight 2.5G ports, enabling speeds up to 2.5 times faster than standard Gigabit connections while maintaining backward compatibility with existing infrastructure. Built with advanced switching fabric technology, it supports up to 20 Gbps throughput for seamless data transfer across multiple devices simultaneously. The finless design ensures silent operation, making it ideal for office and professional settings. With plug-and-play installation and sturdy metal casing, this switch provides reliable performance for small to medium-sized networks requiring enhanced bandwidth without complexity.
Key Features
- Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity.
- Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G Wi-Fi 6 AP, 4K video, and more.
- Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
- Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.
- Silent Operation. Industry-leading finless design ensures silent operation, ideal for any home or business.
- Plug and Play. Allows for easy deployment without the need for a technician.
- Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Specifications
| Brand Name |
TP-Link |
|---|---|
| Features |
2.5G, 8-Port, Switch |
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz |
| Interface | 8× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 12 VDC / 1.0 A) |
| LED | • Power • Link/Act Indicators |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25.4 mm) |
| Max. Power Consumption | 8.87 W |
| Max. Heat Dissipation | 30.158 BTU/h |
| PERFORMANCE | |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.8 Mpps |
| MAC Address Table | 4 K |
| Jumbo Frame | 12 KB |
| SOFTWARE FEATURES | |
| Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS • IGMP Snooping |
| Transmission Method | Store and Forward |
| OTHERS | |
| Certification | CE, FCC ,RoHS |
| Package Content | • 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108S-M2 • Power Adapter • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
