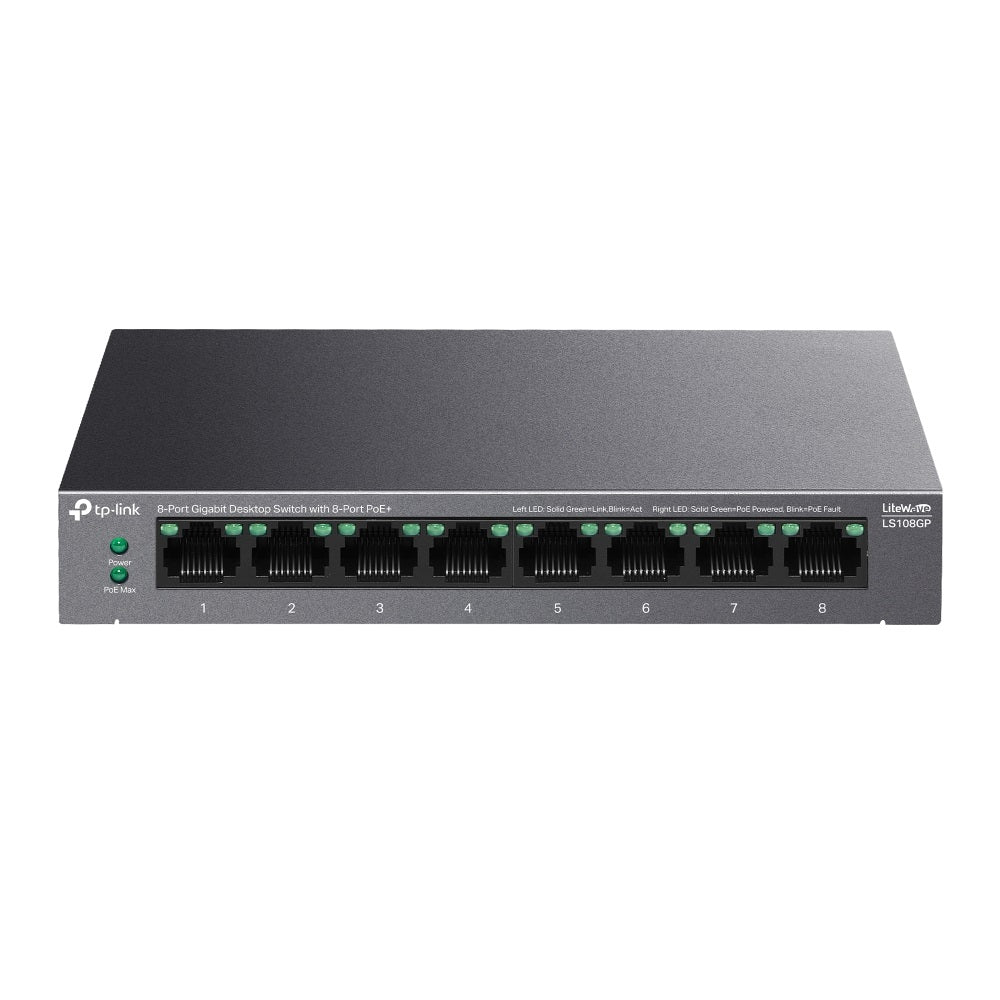

TP-Link LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+
14.000 KD
Sale price
14.000 KD
Regular price
20.000 KD
Featuring 8 high-speed Gigabit ports, this desktop switch from TP-Link allows for seamless connectivity and faster data transfer rates. With 8 additional PoE+ ports, you can power devices like IP cameras and wireless access points without the need for an additional power source. It's the ultimate networking solution for your home or office.
Key Features
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Requires no configuration and installation
- Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
- 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Specifications
| Brand Name |
TP-Link |
|---|---|
| Features |
8-Port, PoE Switch |
| Interface | • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |

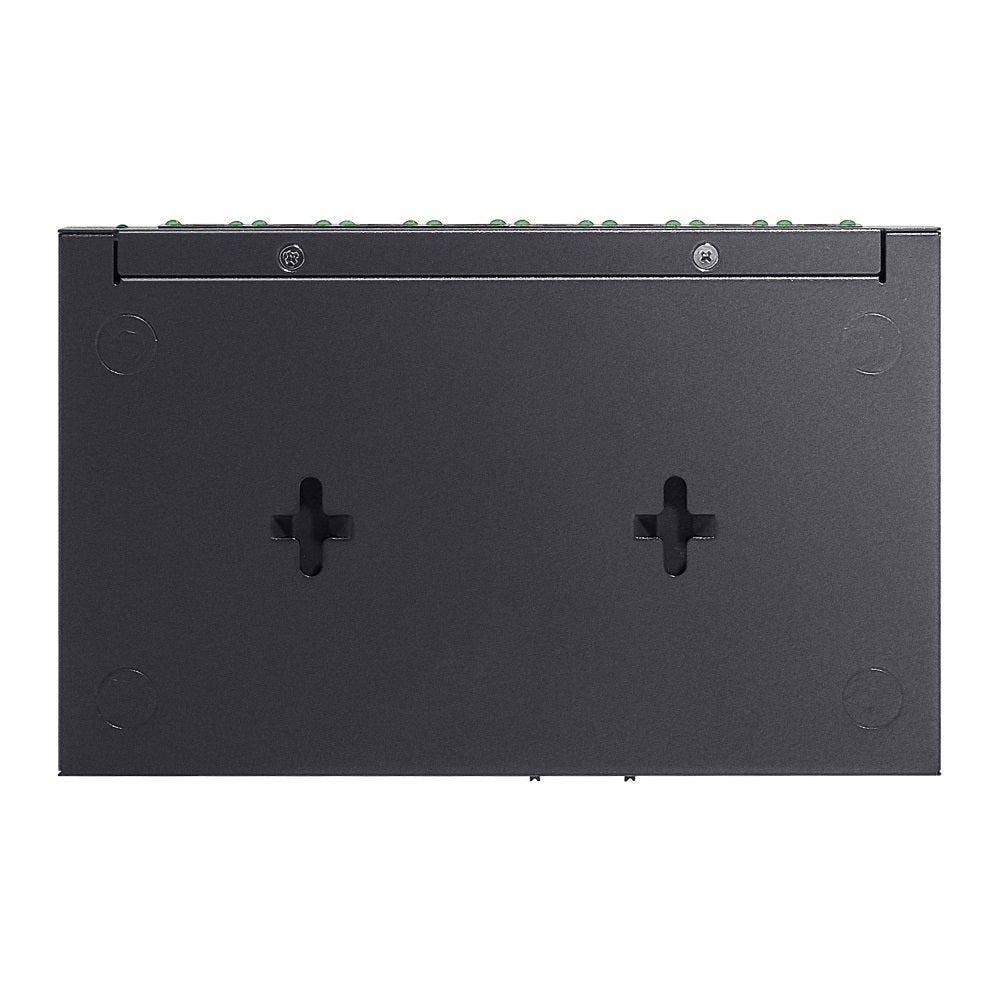

| Installation | • Desktop • Wall Mounting |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8, up to 30 W PoE output per port • PoE Budget: 62 W |
| Dimensions ( W x D x H ) | 6.2×3.9×1.0 in (158×99×25 mm) |
| Max Power Consumption | • 5.53 W (220 V/50 Hz. no PD connected) • 71.61 W (220 V/50 Hz. with 62 W PD connected) |
| Max Heat Dissipation | • 18.81 BTU/h (220 V/50 Hz. no PD connected) • 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected) |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| Advanced Features | • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery Button (Ports 1-8) • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Green Technology |
| Transfer Method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
| Package Contents | • LS108GP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
