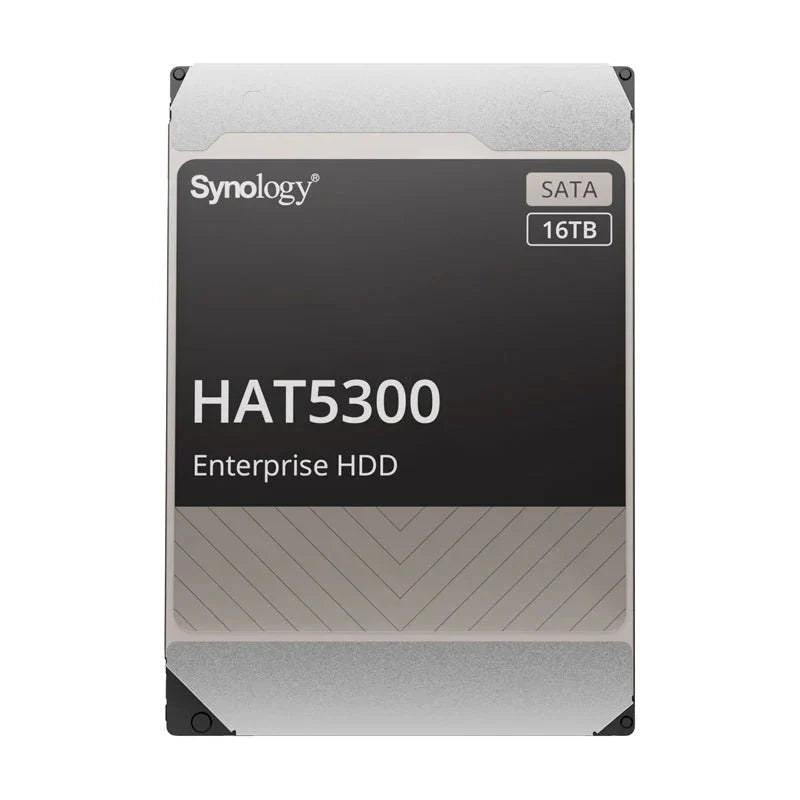

Synology HAT5300 Hard Drive - 16TB / 3.5-inch / SATA-III / 7200 RPM / 512MB Buffer
High-performance, reliable hard drives for Synology systems Enterprise storage drives for Synology systems Synology HAT5300 HDD offers class-leading performance thanks to tight integration with DSM and Synology hardware. With over 300,000 hours of in-house validation testing and backed by Synology's 5-year limited warranty, the HAT5300 series brings unmatched reliability to Synology deployments. Performance Up to 274 MB/s sustained data transfer Optimization Up to 23% faster sequential read in Synology NAS Reliability Purpose-built for Synology servers running 24/7 Updates Automatic firmware updates with DSM Consistent performance scaling Through testing and optimizations, HAT5300 series HDD has been tuned to deliver up to 23% higher sustained sequential read performance in demanding multi-user environments. Built for peak performance Rigorous validation Over 300,000 hours of stress testing with Synology devices ensure that HAT5300 drives can withstand even the most demanding enterprise environments and deliver highly reliable performance. Effortless firmware updates Automatic firmware updates through DSM mean that HAT5300 drives always benefit from the latest enhancements. Durability for 24/7 environments HAT5300 series HDD is backed by a 2.5 million hour MTTF rating, workload support of 550 TB per year, and persistent write cache technology to minimize data corruption in the event of sudden power loss. 5-year warranty At Synology, we are committed to product innovation and quality.
The Synology HAT5300 Hard Drive offers lightning-fast data transfers and an impressive storage capacity, making it a highly efficient and secure solution for storing all of your valuable data. With the latest hard drive technology, you can trust that your data will remain safe and easily accessible whenever you need it.
Key Features
- Capacity: 16TB
- Interface: SATA-III 6Gb/s
- Spindle Speed: 7200 rpm
- Buffer Size: 512MB
Specifications
| Brand | Synology |
| Model | Synology HAT5300 |
| Device Type | Hard Drive - Internal |
| Capacity | 16 TB |
| Form Factor | 3.5-inch |
| Interface | SATA-III 6Gb/s |
| Buffer Size | 512 MB |
| Spindle Speed | 7200 rpm |
| Drive Transfer Rate | 600 MBps (External) |
| Internal Data Rate | 262 MBps |
| MTBF | 2,500,000 hours |
| 24x7 Operation | Yes |
| Interfaces | 1x SATA-III 6Gb/s |
| Compatible Bay | 3.5-inch |
| Features | Workload up to 550 TB per year |
| Power Consumption | 4 Watt (idle) / 7.63 Watt (random read/write) |
| Operating Temperature | 5 °C - 60 °C |
| Storage Temperature | -40 °C - 70 °C |
| Shock Tolerance (Operating) | 70 g @ 2 ms |
| Shock Tolerance (Non-Operating) | 250 g @ 2 ms |
| Vibration Tolerance (Operating) | 0.75 g @ 5-300 Hz |
| Vibration Tolerance (Non-operating) | 3 g @ 5-500 Hz |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Dimensions (W x D x H) | 101.8 x 147 x 26.1 mm |
| Weight | 720 g |
| Warranty | Five Years |
