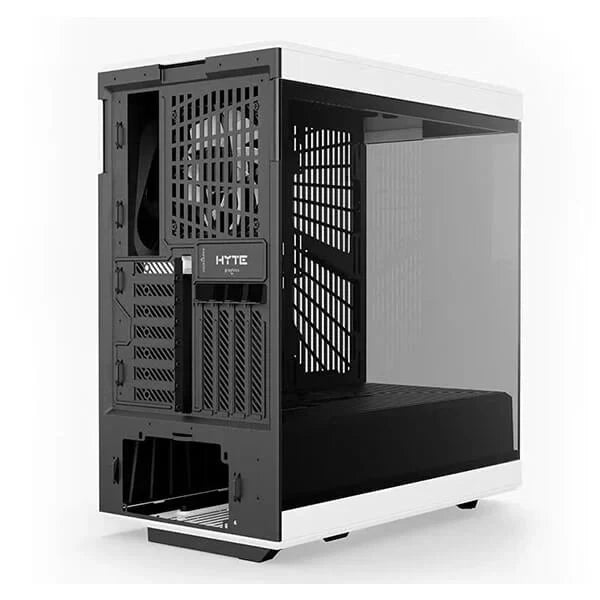

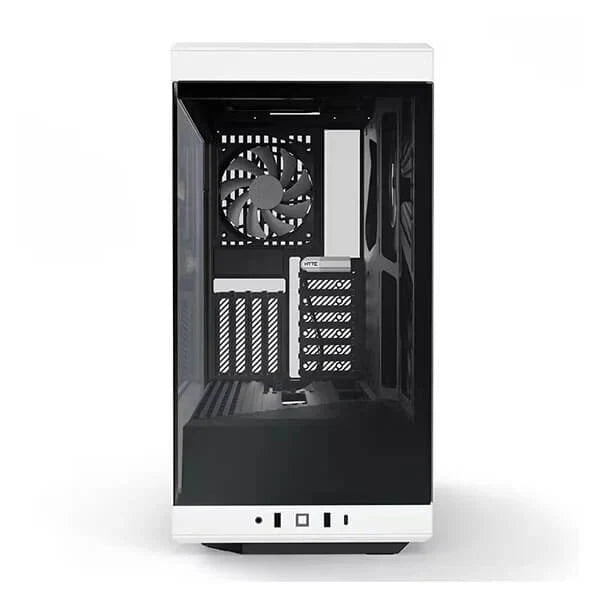

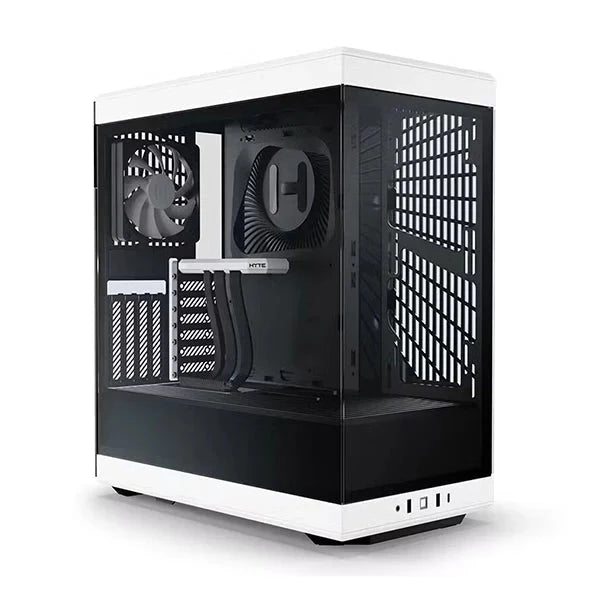

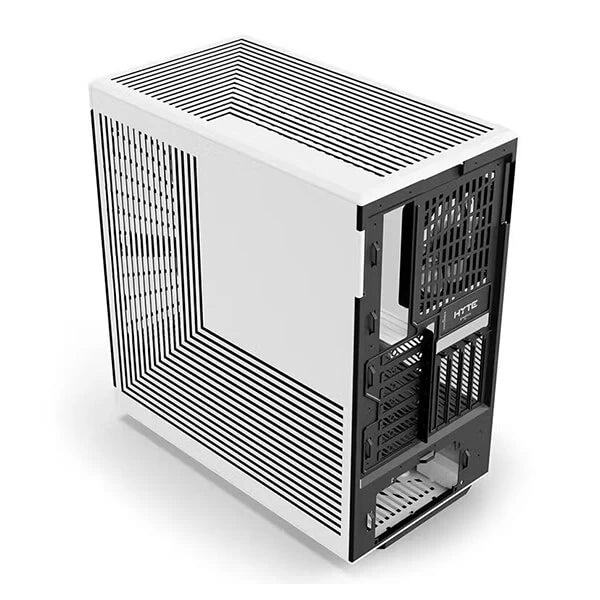

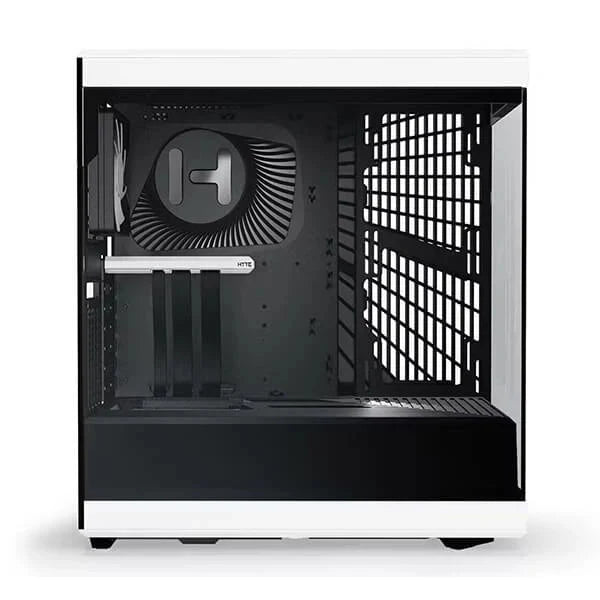

HYTE Y40 Mid Tower Two Panel Front & Left Side Tempered Glass Case With 2 Fan - Black/White
The all-new Y40 is designed to wow and priced to thrill while defining new industry standards for ATX cases everywhere. Elevate your expectations of multi-dimensional case design, next-gen GPU compatibility, and overall system harmony today.
-
Multi-Dimensional Design
Details connect every part into a deeply harmonic design structure. Every edge is adorned in tightly controlled beveling for s-tier aesthetics. 2-Piece Panoramic Glass set the stage for a completely unobstructed view of your system’s performance. -
Ginormous Vertical Graphics Support
Y40 grows GPU support to 4 full slots with additional airflow space between the edge of the card and the glass. An intake fan below the power supply shroud provides fresh air upwards to the GPU to improve cooling further. -
Included Luxury PCIE 4.0 Riser Cable
A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. -
Cooling
Y40 comes with 2x 120mm fans pre-installed, one beneath the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm allowing for large 60mm+ radiators to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups. Y40 also brings support for large air coolers over 180mm in height, allowing for almost every CPU cooler on the market.
Key Features
- Item ID : NS026577
- Brand : HYTE
- Case Type : ATX MID Tower
- Sidepannel : 2 Sides Tempered Glass
- Pre-Installed Fans : 2
- Radiator Support : Up to 240mm
- Color : White
Specification
|
Model No |
HYTE Y40 Mid Tower |
|
Part No |
CS-HYTE-Y40-BW |
|
Color |
Black/White |
|
Case Material |
Steel, 4.0mm tempered glass (both sides) |
|
Case Size |
Mid Tower 439mm x 240mm x 472mm |
|
Lighting |
Non RGB |
|
Motherboard Support |
ITX, mATX, ATX |
|
Pre-installed Fans |
3x 120mm |
|
Additional Fan Support |
Side: 2x 120mm/140mm Top: 3x 120mm Bottom: 1x 120mm/140mm (1x 120mm, 1300 rpm included) Rear: 1x 120mm (1x 120mm, 1300 rpm included) |
|
Radiator Support |
Side: 120, 140, 240, 280mm up to 120mm thick Rear : 120mm Top: 120, 240, 360mm |
|
SSD/HDD Support |
1 x 3.5" HDD or 2 x 2.5" SSD |
|
I/O Ports |
Front USB 3.0: 2 Front USB 3.2 Type-C: 1 Audio/Mic Jack: 1 Dust Filters: Top, Side, Bottom (x2) |
|
CPU Cooler Limitation |
183mm |
|
Dust Filters |
1 x Top (magnetic), 1 x Front Panel (magnetic), 1 x Bottom (tray) |
|
Product Size ( Dimension ) |
439mm x 240mm x 472mm |
|
Package Content |
Case & Cables |
|
Warranty |
1 Year ( As per Manufacturer Policy ) |
