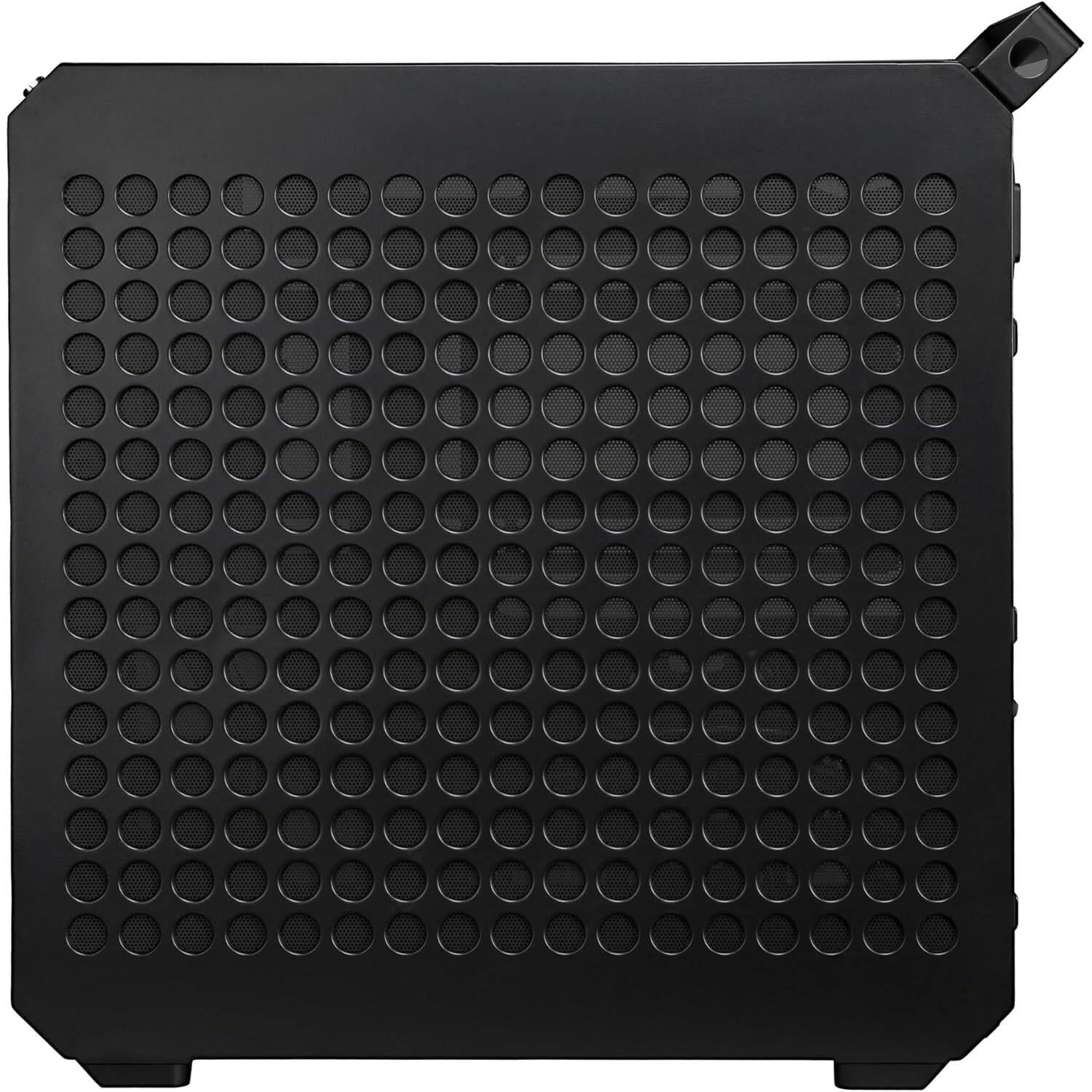

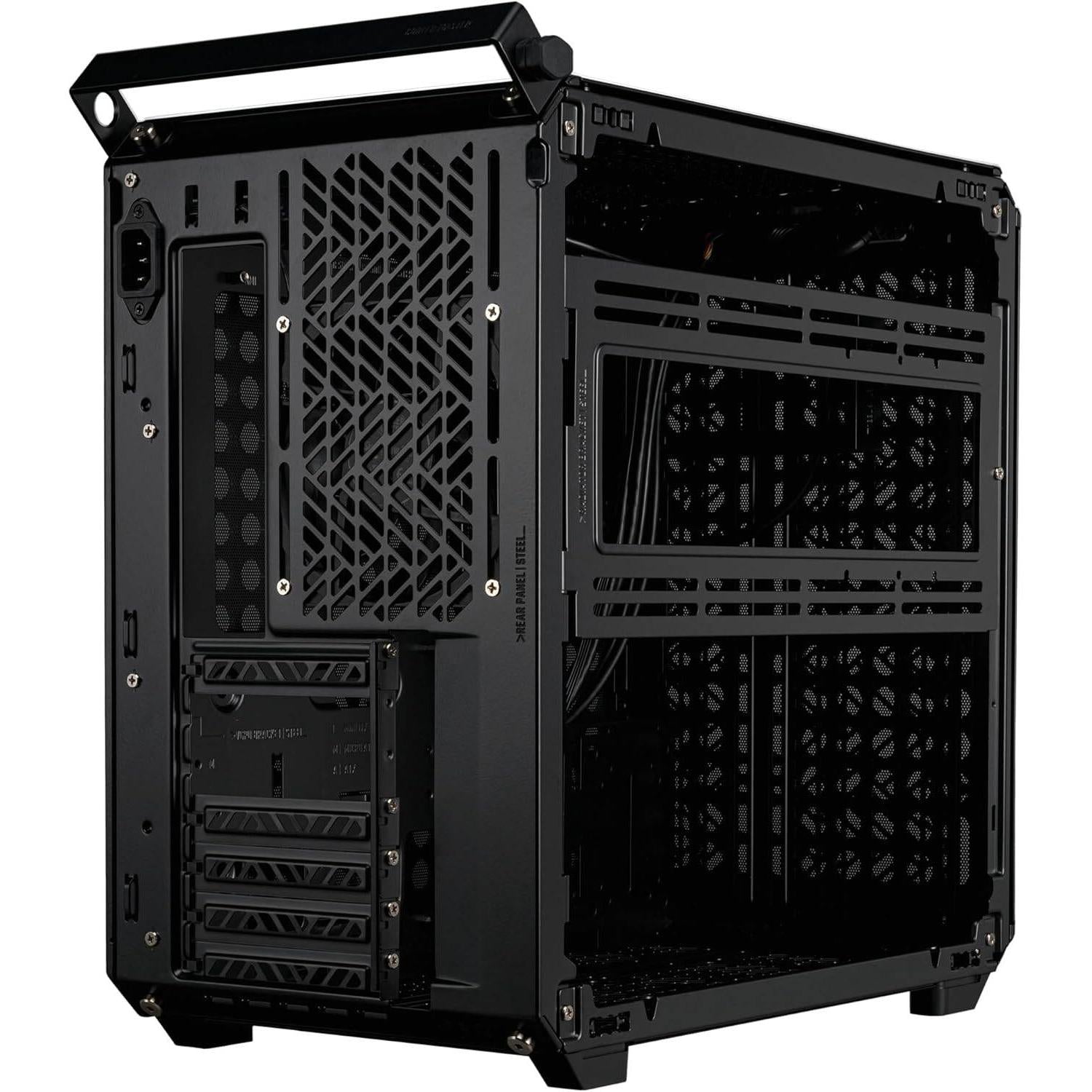

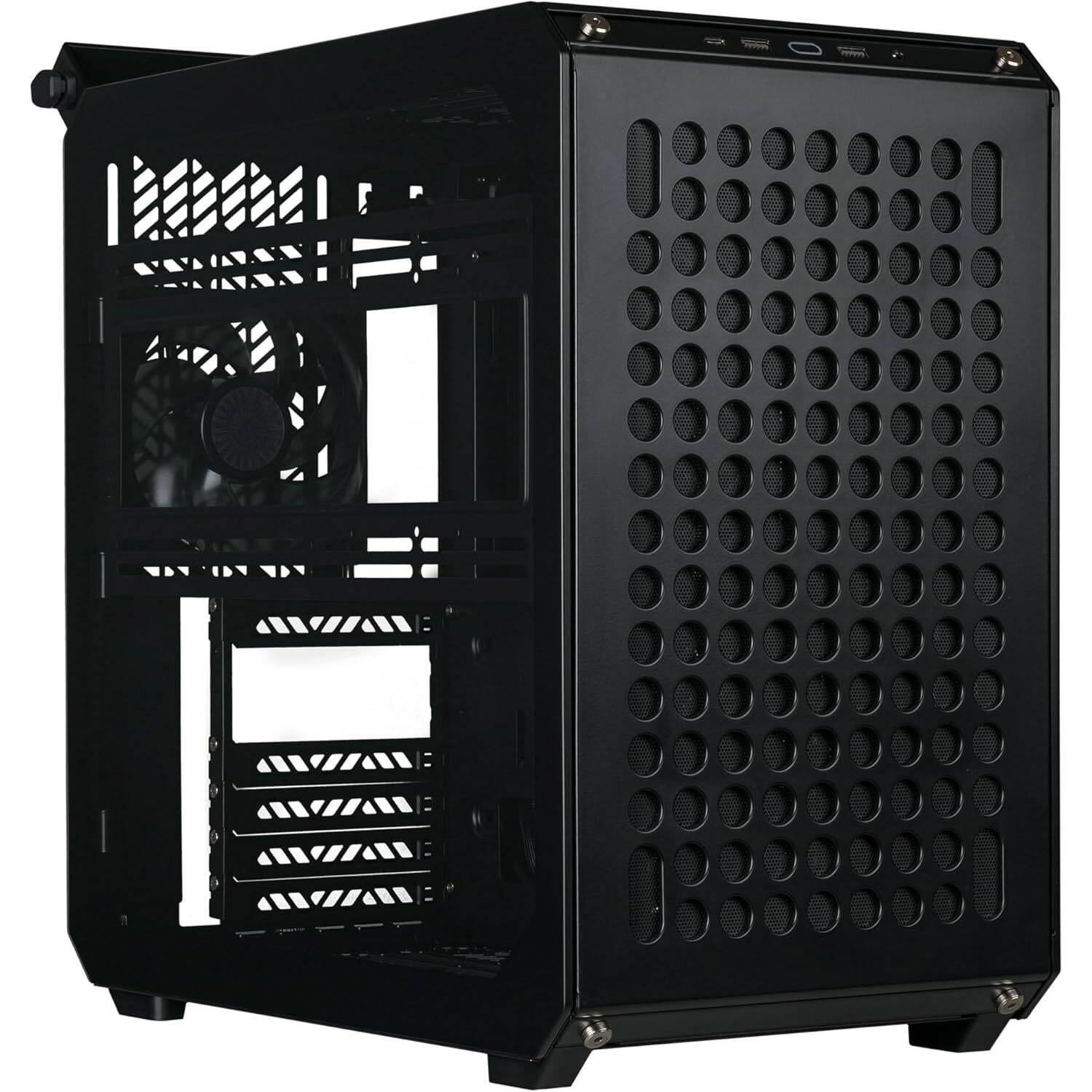

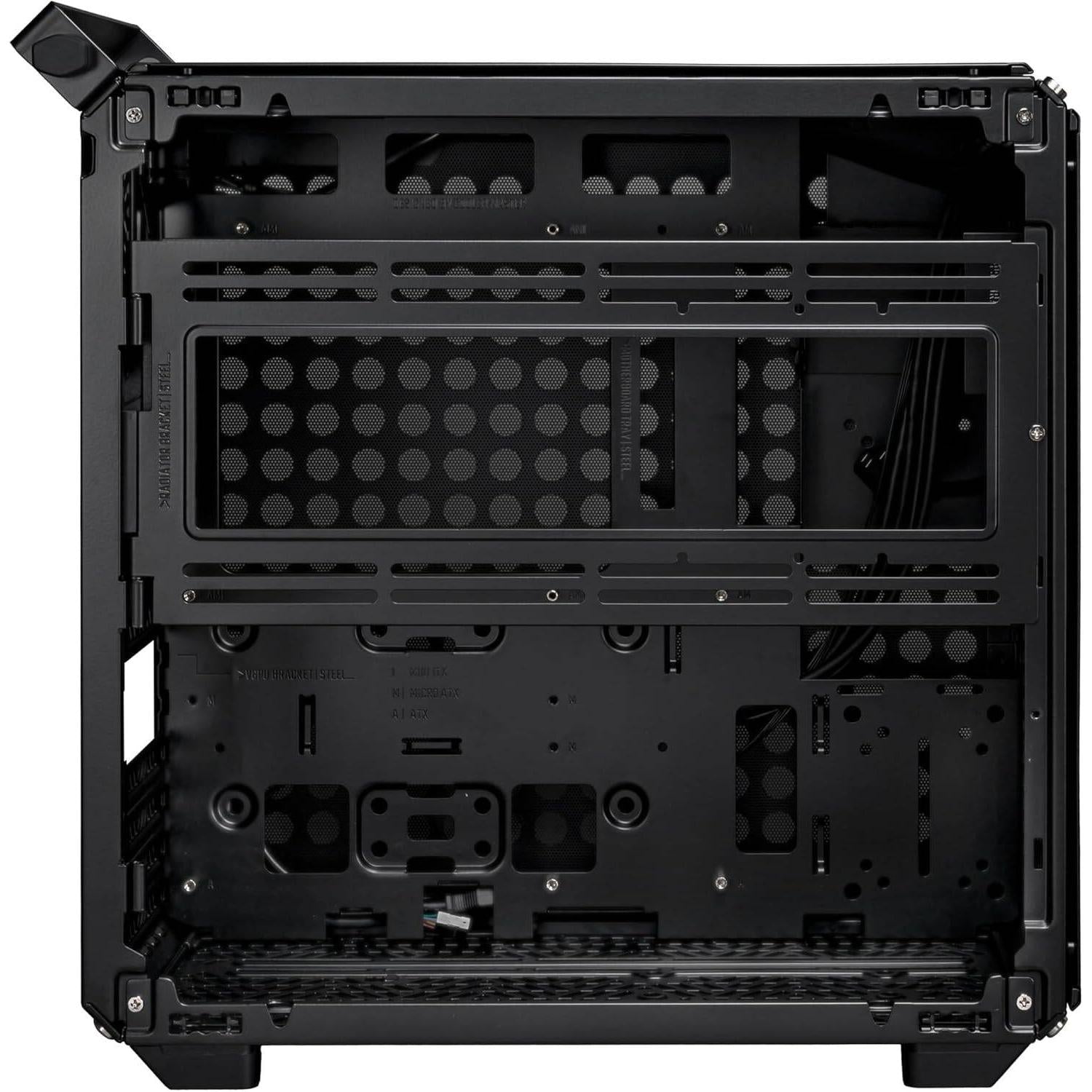

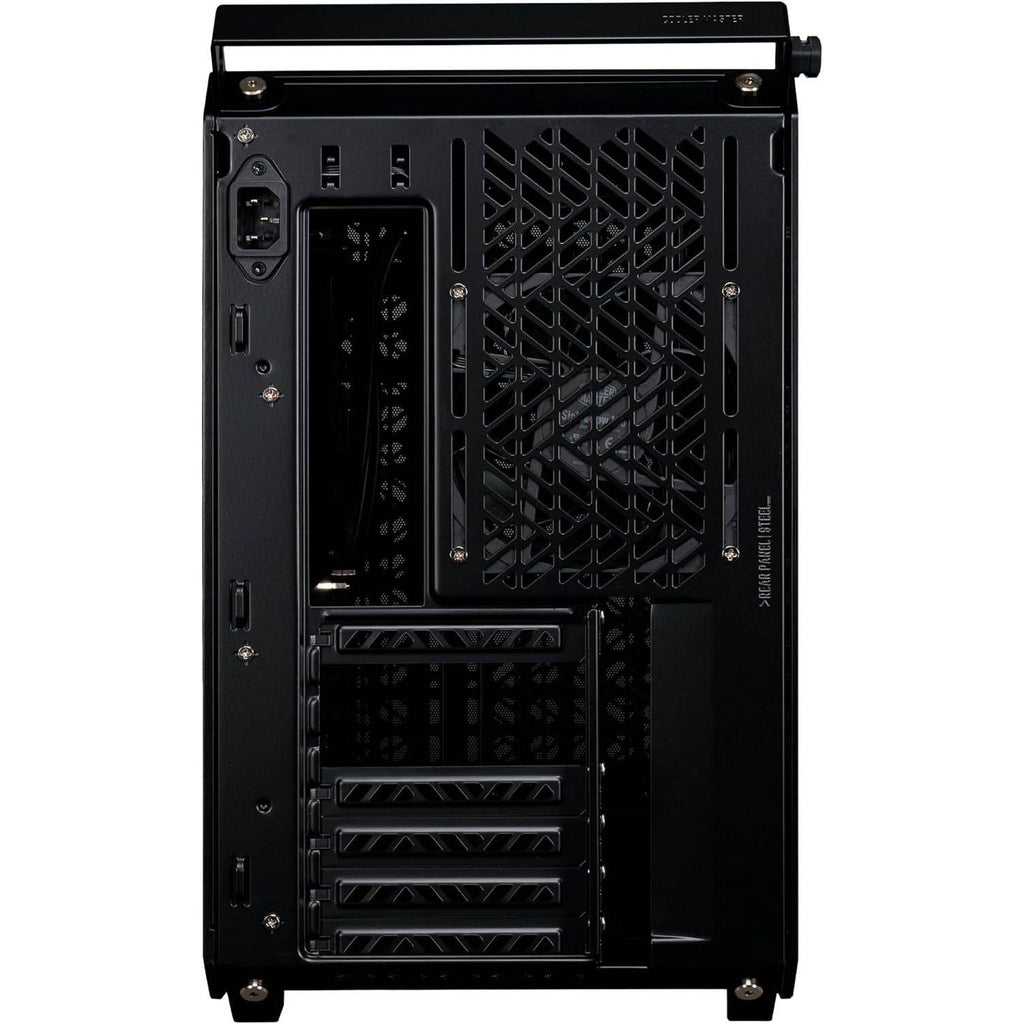

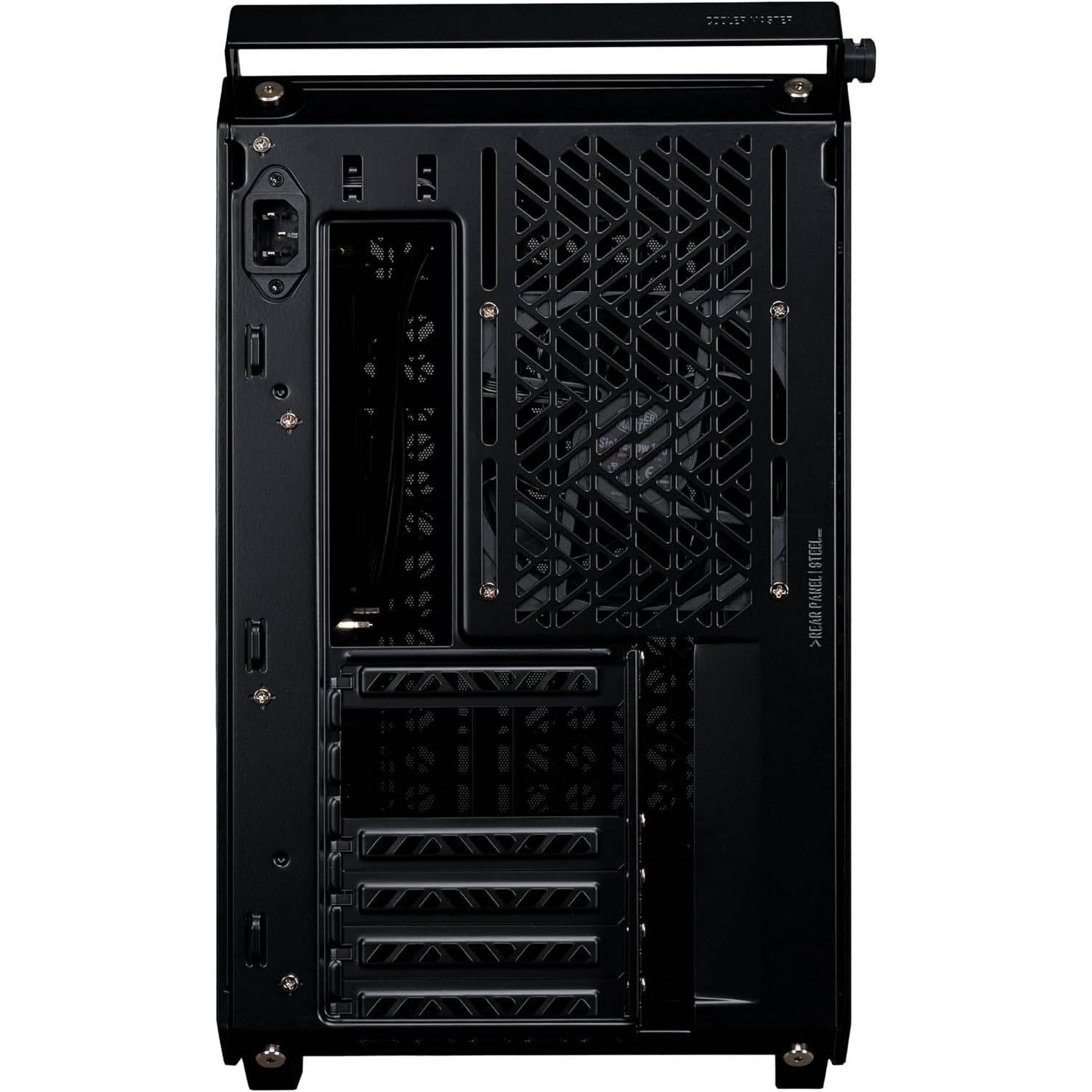

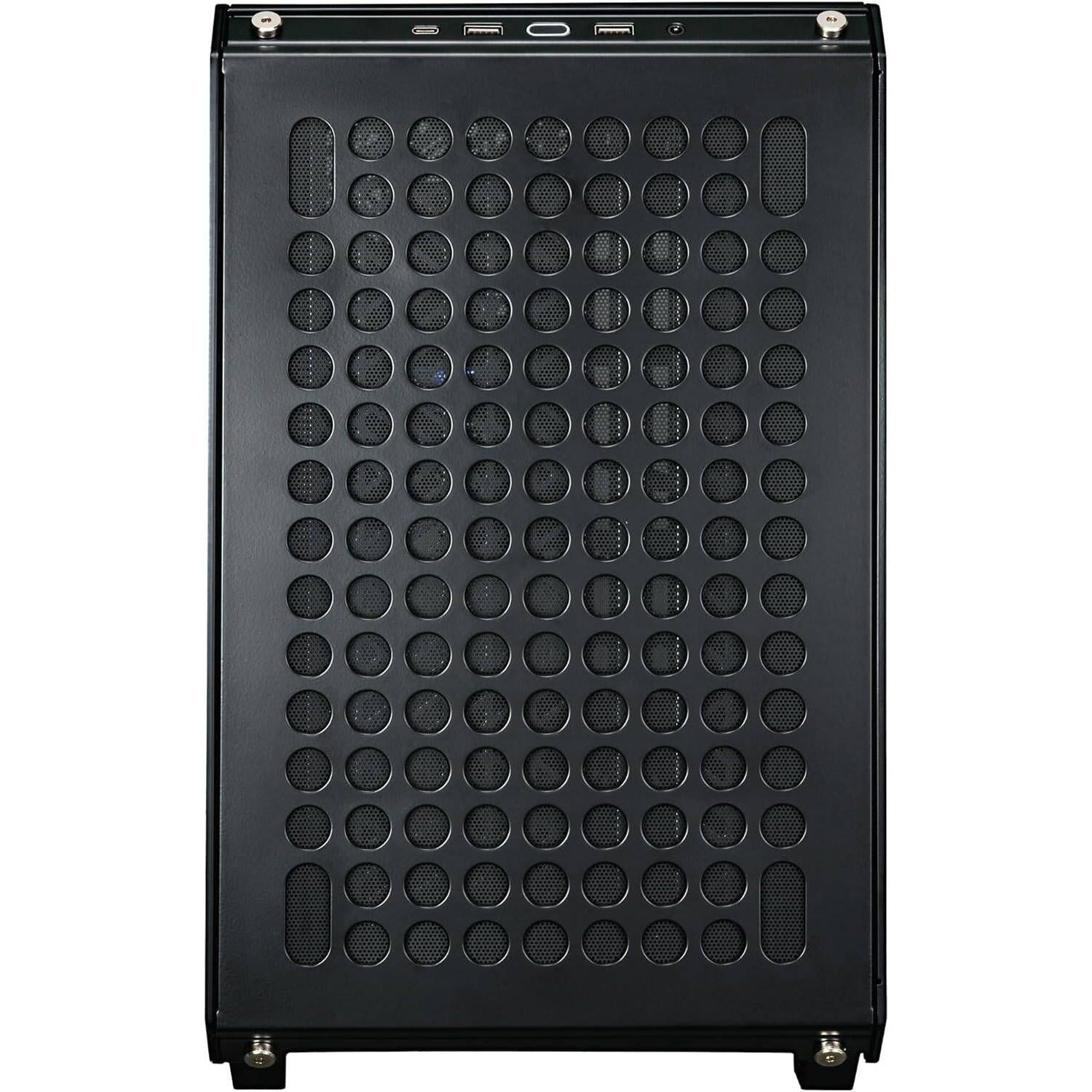

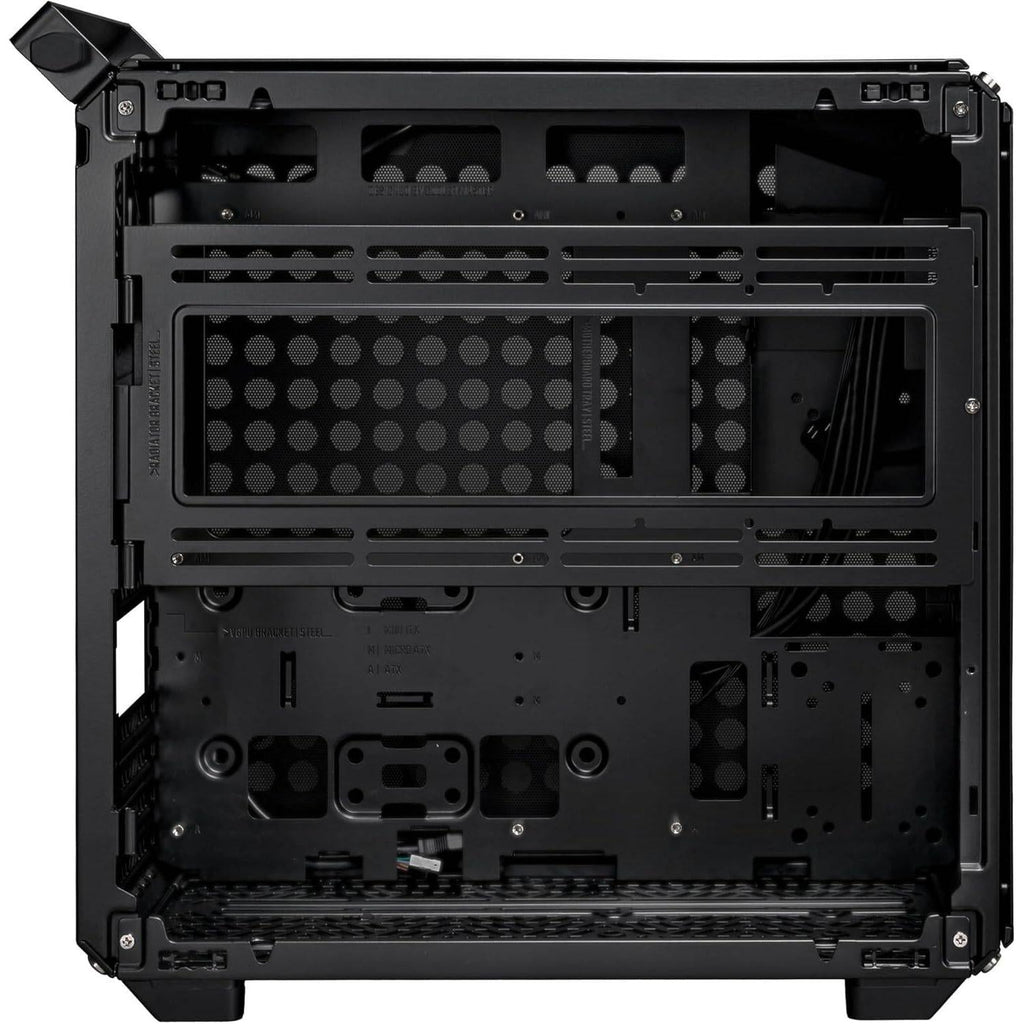

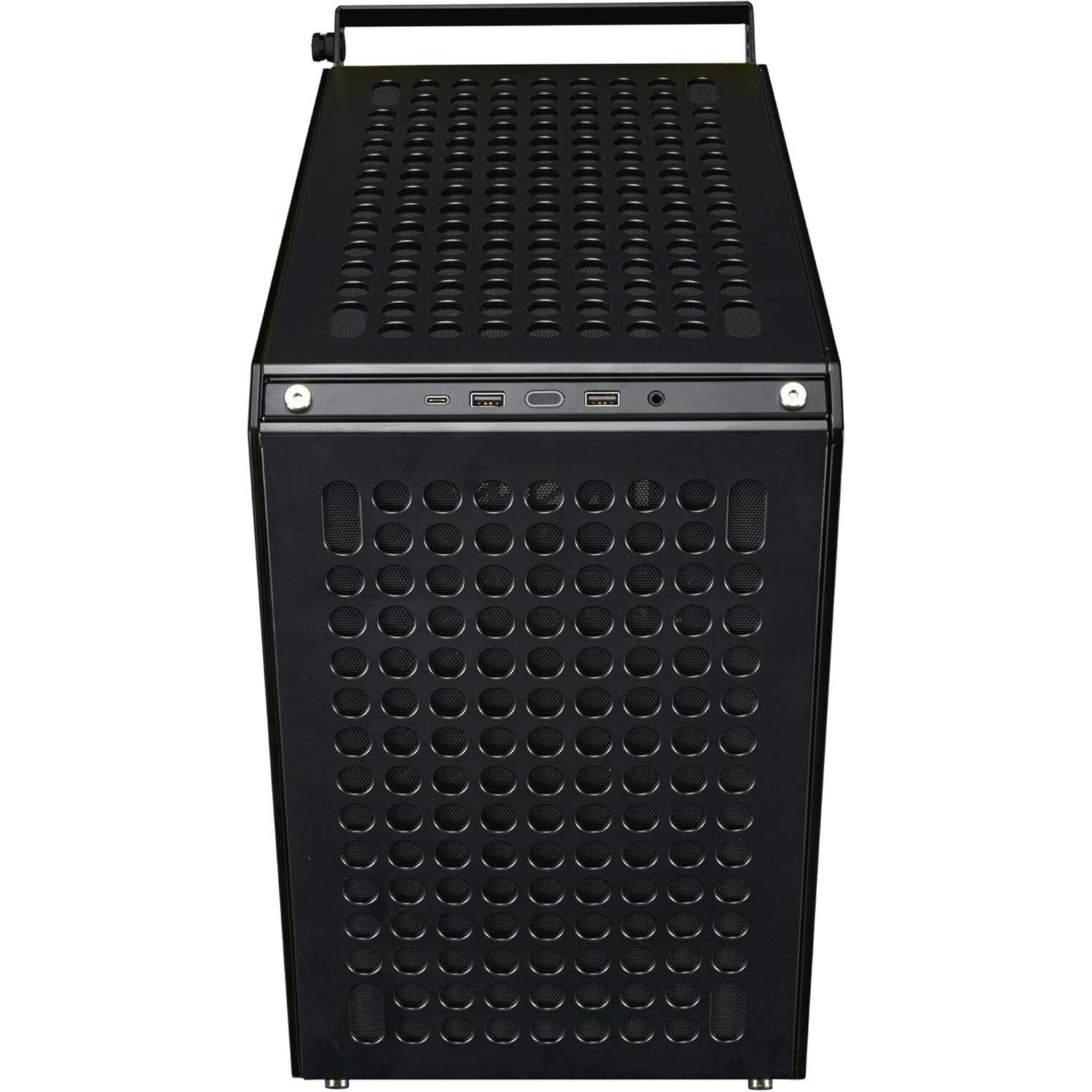

Cooler Master Qube 500 Flatpack Eatx Case - Black
The Cooler Master Qube 500 Flatpack EATX Case in Black represents a paradigm shift in chassis design, engineered for builders prioritizing expansive component compatibility and thermal excellence. This full-tower enclosure supports extended ATX, standard ATX, Micro-ATX, and Mini-ITX configurations, accommodating dual-socket server boards and high-end graphics cards exceeding 400mm in length. The innovative flatpack construction minimizes shipping dimensions while maintaining structural integrity, reducing logistics costs without compromising build quality. Extensive fan mounting options—supporting 120mm and 140mm units across multiple positions—enable sophisticated cooling hierarchies for extreme overclocking and sustained workstation performance.
Key Features
- Highly Customizable: Experience an unparalleled level of customizability to express your creativity.
- Fully Modular: Enjoy modular panels that simplify case prep. Each panel is individually removable, making maintenance a breeze.
- Full-Sized Specs, Pint-Sized Body: Despite its compact 33L size, it accommodates Mini-ITX to E-ATX for easy installation and future expansion.
- Components Clearance: Maximum supports CPU coolers up to 164mm, GPUs up to 365mm, and PSUs up to 332mm.
- Versatile Cooling: Stay ahead with versatile mounting options for a 280mm liquid cooler and up to 9 fans for optimal performance.
- USB 3.2 Gen 2x2 Type C: Integrated in the I/O panel is a USB 3.2 Type-C port.
- Edge-To-Edge Tempered: Display your build with pride through the thick tempered glass panel.
Specifications
| Model Number | Q500-KGNN-S00 |
| Exterior Color | Black |
| Materials - Exterior | Steel, Plastic, TG |
| Materials - Left Side Panel | Grey TG + Steel |
| Dimensions (L x W x H) | 406 x 231 x 415mm (Incl. Protrusions), 380 x 231 x 381mm (excl. Protrusions) |
| Volume | 33.44L (excl. Protrusions) |
| Motherboard Support | ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273mm w/ ATX PSU) |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 4 |
| 2.5" Drive Bays | 3 |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 x 2 Type C |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fans - Rear | 1x 120mm (1800 RPM) SF Black PWM (Black), 1x 120mm (1800 RPM) SF White PWM (White) |
| Fan Support - Front | 1x 120/140mm (x2 if PSU is mounted in bottom) |
| Fan Support - Top | 2x 120/140mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Bottom | 2x 120/140mm |
| Fan Support - Left side | 2x 120/140mm |
| Radiator Support - Front | 120/140 mm (240/280mm w/ PSU in bottom) |
| Radiator Support - Top | 120 / 140 / 240 / 280mm (280mm can be used within 53mm thickness) |
| Radiator Support - Rear | 120mm |
| Radiator Support - Bottom | 120 / 140 / 240 / 280mm |
| Radiator Support - Left side | 120 / 140 / 240 / 280mm |
| Clearance - CPU Cooler | 164mm-172mm (Remove the water cooling bracket) |
| Clearance - PSU | 173mm to first GPU slot, 216mm max space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space) |
| Clearance - GFX | 365mm |
| Cable Routing - Behind Motherboard Tray | 29-32mm |
| Handle | Black x 1 (Flatpack), Grey x 1 (White) |
| Gem Mini | Black x 1 (Flatpack), Grey x 1 (White) |
| Dust Filters | Front, Top, Bottom, Right side |
| Power Supply Support | SFX / SFX-L / ATX |
| Size | Mid Tower |
| Series | QUBE Series |
| Back Connector Motherboard Support | No |
